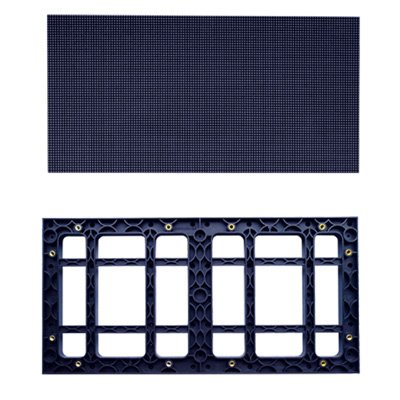

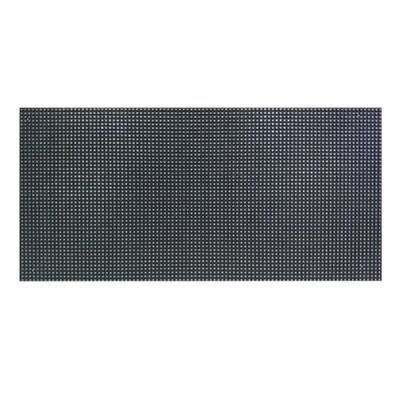

P2.5 LED Modul iç Məkan

PM25-I Indoor SMD 2121 Series

Module specification

Technical parameters

Parameter

Avg. Power (W/ m² )

175

Pixel pitch (mm)

2.5

Brightness (cd/ m² )

≥600

Pixel density (dots/ m² )

160000

Scan Mode

1/32scan, constant current

Pixel Composition

3 IN 1

Working voltage (V)

5

LED package

SMD 2121

Service Life (h)

≥100000

Module Pixel Density

128×64

Kit Material

PC+GF

Module size (mm)

320×160 thickness14.5±0.15

Protection Grade

IP40(front)

Viewing Distance (m)

420±5

Temperature & Humidity

-10℃~+40℃ RH=10-80%(non condensing)

Module Interface

≥2.5m

Grey Scale (Bit)

16384

Viewing Angle (degree)

18

Refresh rate (Hz)

≥1920

Module Max. Power(W)

9

Driver IC

Double Latch IC

Module Avg. Power (W/ m² )

H≥120°V≥120°

Control mode

PC,video SYNC, real-time
